Kit Includes:
(1) Receptacle Connector
(1) Plug Connector
(1) Pin Receptacle Wedgelock
(1) Socket Plug Wedgelock
(6) Pin, Machined, Size 20, 20-22awg, Nickel Plated
(6) Socket, Machined, Size 20, 20-22awg, Nickel Plated
High-performance, cost-effective solution specifically designed for low current applications, accepting 16-22awg wire. The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material is durable and has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of an internal and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.
ATM Connectors retaining ATM Wedgelocks are compatible with Deutsch DTM Connectors retaining DTM Wedgelocks!

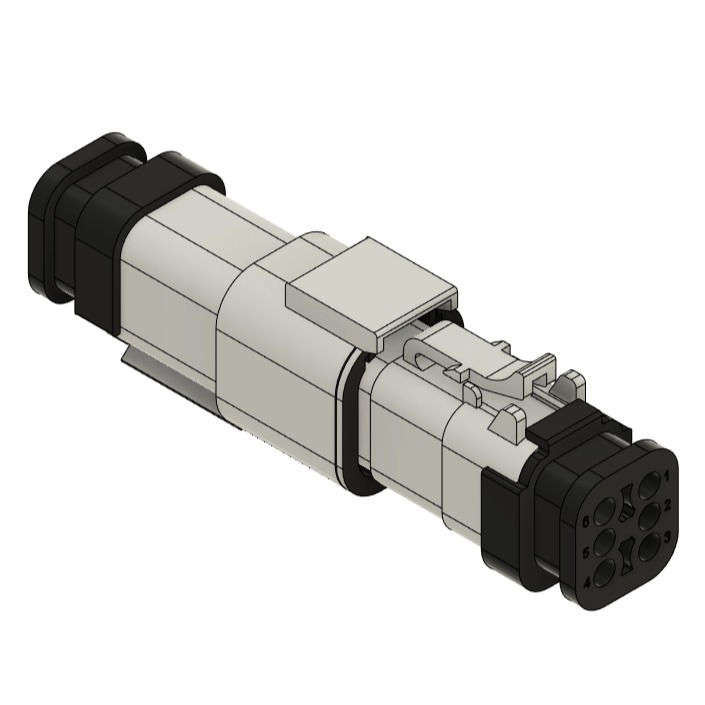

6 Cavity ATM/DTM Strain Relief Connector Kit, Color Choice
Color Option(s)
Black
Blue
Brown
Grey
Green
Orange
Red
White
Yellow
Cavities 6 Strain Relief YES Min. Daim. Heatshrink
to fit over Strain Relief
Unrecovered 0.750"
(Unshrunk)
Operating
Temperature
-55°C to +125°C
@ rated current
Maximum Current 7.5A Continuous Contact Size
20 Terminal Wire Size
Solid
20-22awg Terminal Wire Size
Stamped
16-22awg
